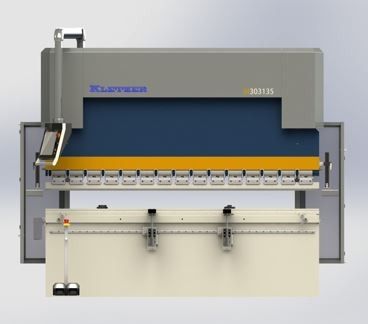

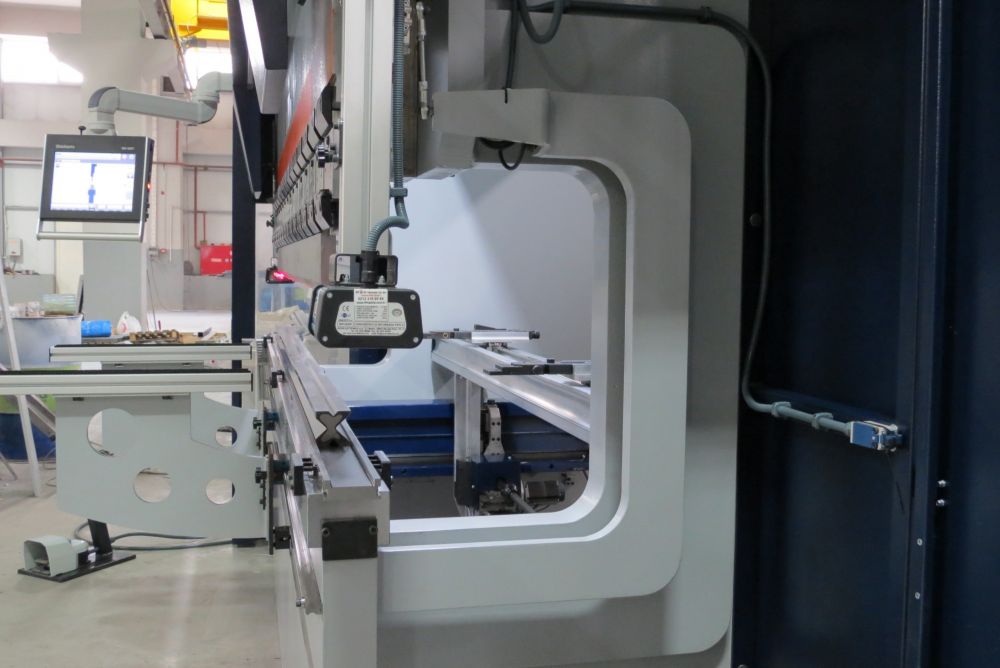

CNC press brakes - CNC Abkantpresse KLETZER Maxima-EUROPA XL 2500 mm x 60 to, Y1 Y2 X CNC Achsen + manulle Bombierung, 2D Steuerung

Manufacturer KK-Industries
Stock number 11-10081
Machine model CNC Abkantpresse KLETZER Maxima-EUROPA XL 2500 mm x 60 to, Y1 Y2 X CNC Achsen + manulle Bombierung, 2D Steuerung
Year of construction New
bending length 2550 mm
pressure 60 t
Time of delivery 12-16 Weeks
Price € 34.900,00
CNC Abkantpresse KLETZER Maxima-EUROPA XL 2500 mm x 60 to, Y1 Y2 X CNC Achsen + manulle Bombierung, 2D Steuerung
CNC Abkantpresse KLETZER Maxima-EUROPA XL 2500 mm x 60 to, Y1 Y2 X CNC Achsen + manulle Bombierung, 2D Steuerung

Click to enlarge image

Print view
Add to watchlist
Print view

Technical data

pressure 60 t
bending length 2550 mm
column width 2100 mm
daylight 550 mm
stroke lenght (max.) 270 mm
column throat depth 450 mm
messurements (LxWxH) 3220 x 2250 x 2560 mm
weight approx. 5200 kg
motor power 5,5 kW

Description

Note

Prices ex works, excl. 20% VAT.

Terms and conditions apply toGeneral Terms of Deliveryof the Austrian Association for the Machine-Building and Steel Construction Industry of 01 January 2002.We only sell under proprietary rights. The goods stay in our unrestricted property until completly payed.

Prices and mistakes are subject to change.
