CNC press brakes - CNC Abkantpresse KK Kletzer Europa Maxima XL 1300 mm x 40 to, Y1 Y2 X und R CNC Achsen + CNC Bombierung, 2D Steuerung 15 "

Manufacturer KK Kletzer
Stock number 3002-0743
Machine model CNC Abkantpresse KK Kletzer Europa Maxima XL 1300 mm x 40 to, Y1 Y2 X und R CNC Achsen + CNC Bombierung, 2D Steuerung 15 "
Year of construction New
bending length 1300 mm
pressure 40 t
Time of delivery 12-16 Weeks
Price € 32.500,00
Special price € 30.220,00
CNC Abkantpresse KK Kletzer Europa Maxima XL 1300 mm x  40 to, Y1 Y2 X und R CNC Achsen + CNC Bombierung, 2D Steuerung 15 "

Click to enlarge image

Print view
Add to watchlist
Print view

Technical data

pressure 40 t
bending length 1300 mm
column width 1000 mm
daylight 400 mm
stroke lenght (max.) 180 mm
column throat depth 300 mm
messurements (LxWxH) 2125 x 1950 x 2100 mm
weight approx. 2500 kg
motor power 5,5 kW

Description






Standard equipment:

KK-Industries GmbHhas the general agency of the KK Kletzer group of companies.

We have put together a high-quality model for Europe.

The CNC press brake KK-Industries made by KK Kletzer bursa Turkey

Model KK Kletzer EUROPA Maxima XL


The strong press brake KK Kletzer Europa Maxima XL is characterized by its high precision, accuracy and versatile application.

KK Kletzer Europa Maxima XL has a very large installation height and as a result a large stroke (cylinder travel).

The projection is also above average in order to limit as little as possible.

We focus on quality, which is also reflected in the control system.

As a standard control we have the high-quality ESA S 640 15 "Made in Iatia
 2D touch-screen controller with offline sofware Furthermore, the KK Kletzer Europa Maxima XL press brake is equipped with Y1, Y2, X and R CNC axes via the control.

Of course, the CNC crowning via the control is included.

Even with the top tool and the die we make no compromises and equip

the CNC press brake KK Kletzer EUROPA MAXIMA XL with quality tools from EUROSTAMP Italy.

Of course, every machine is just as good as the service. That's why we put our focus

on highly qualified employees with long experience in the CNC sheet metal working area.

CNC axes Y1, Y2, X and R axis

Control S 640 15 "

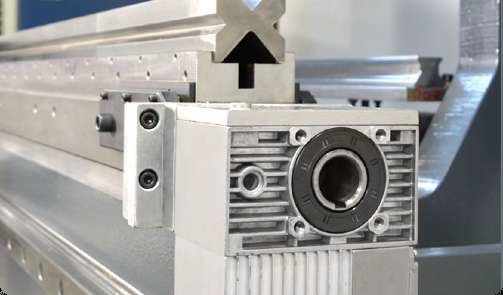

Backgauge with double linear guidance and ball screw

mot. anti deflection adjustable by CNC control

2 pcs. Support arms

Laser protection device on the upper beam

CE protection

various options available
