press brake used machine sheet metal working
Manufacturer Baykal
Stock number 10100
Machine model BAYKAL - APHS 41300
Year of construction 2017
bending length 4100 mm
pressure 300 t
Time of delivery prompt
Price € 110.000,00
Special price € 69.000,00
BAYKAL - APHS 41300

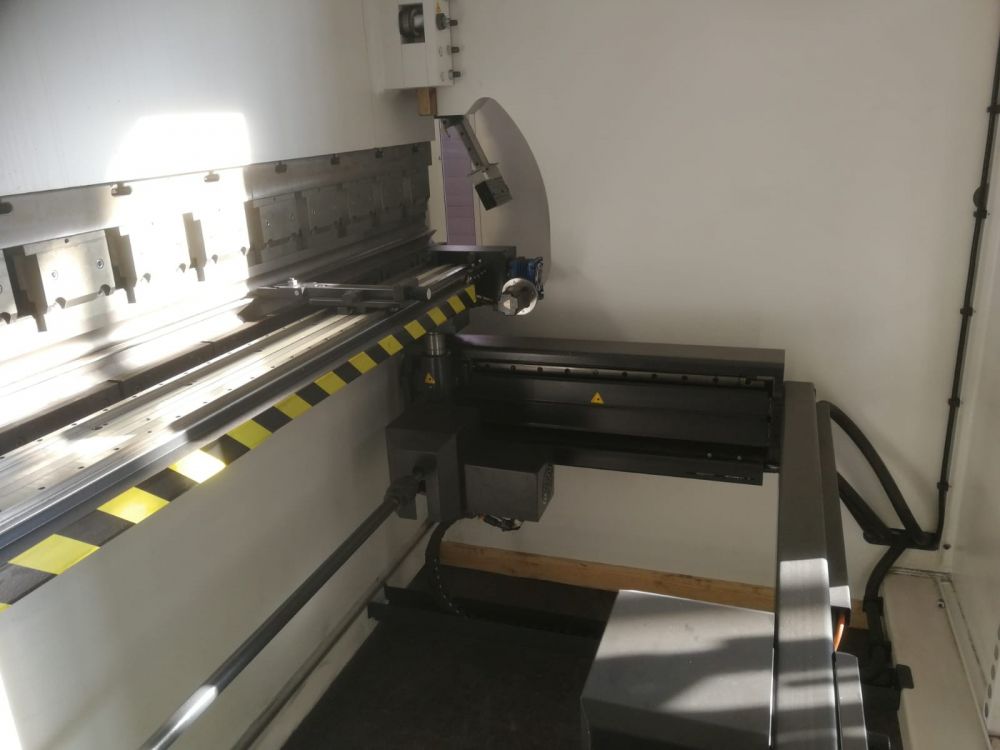

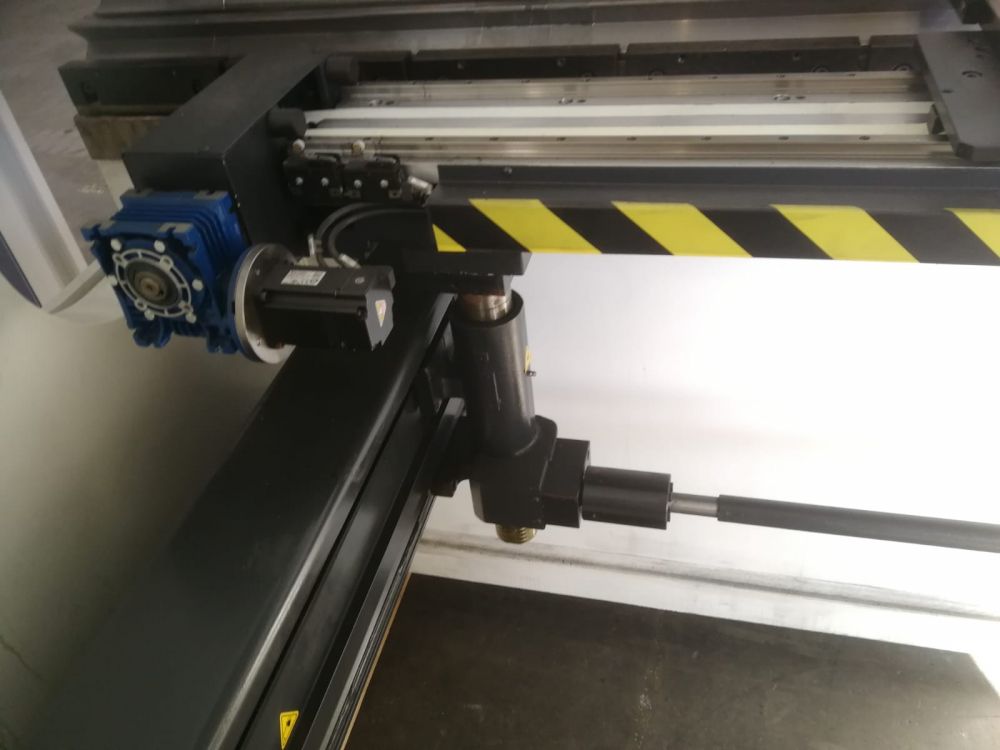

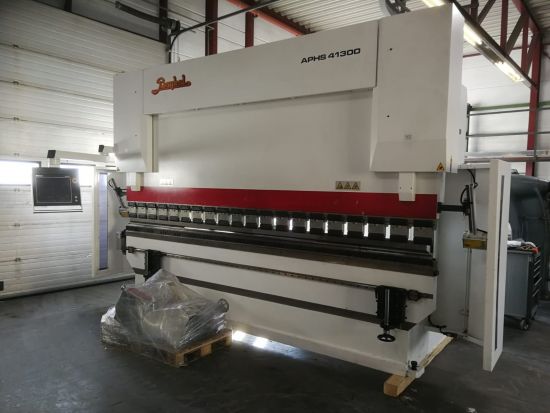

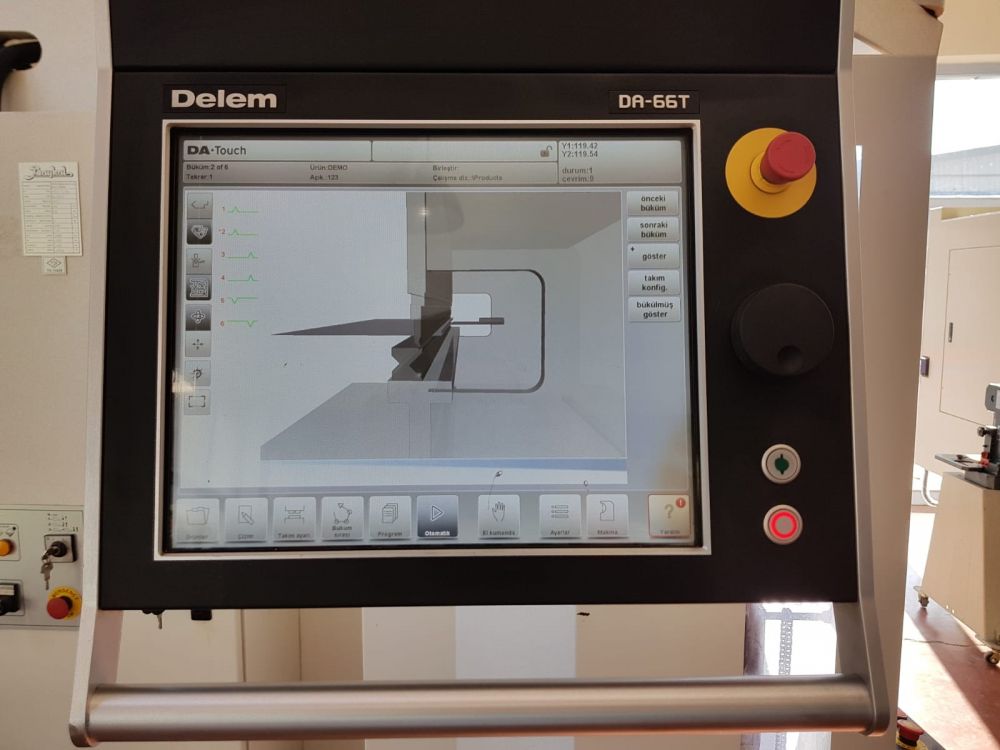

Click to enlarge image

Print view
Add to watchlist
Print view

Technical data

pressure 300 t
bending length 4100 mm
number of axes 6 (Y1, Y2, X, R, Z1, Z2)

Description

CNC press brake BAYKAL Mod. APHS 41300

Bending length:        4,100 mm
Compressive force:     300 tons
Projection:                   500 mm
Installation height        660 mm
Stroke                         320 mm
Passage between the uprights 2550 mm
Length                      3,900 mm
Width                        2,200 mm
Height                      3,150 mm
Weight                           15 to
Year of construction    11/2017

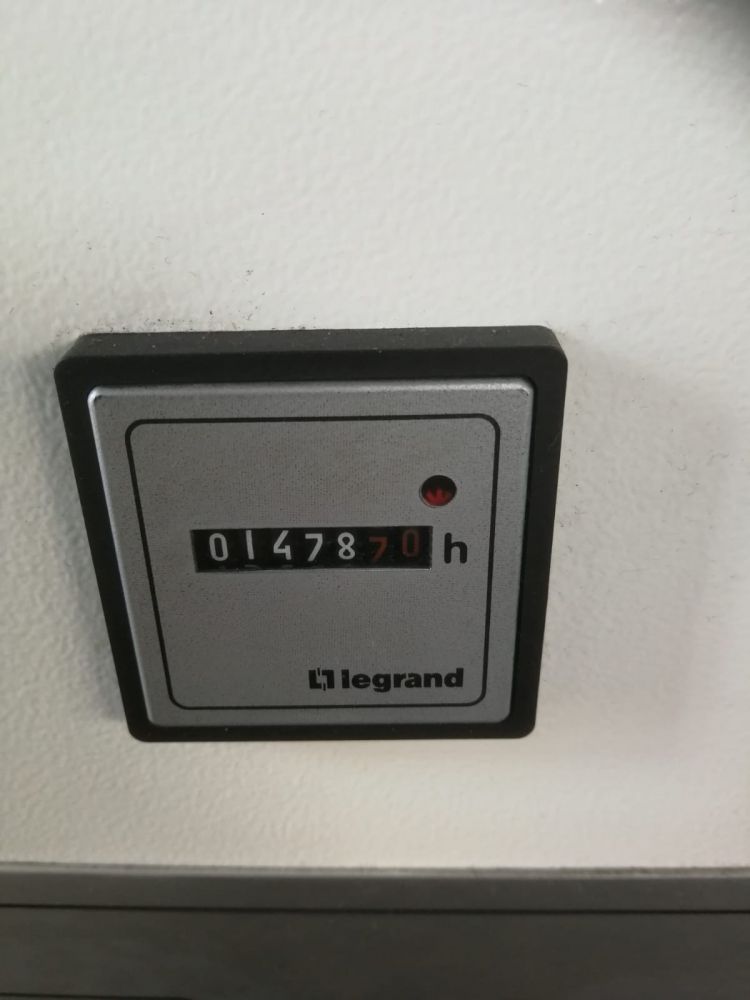

Operating hours     1478 hours

Note

Prices ex works, excl. 20% VAT.

Terms and conditions apply toGeneral Terms of Deliveryof the Austrian Association for the Machine-Building and Steel Construction Industry of 01 January 2002.We only sell under proprietary rights. The goods stay in our unrestricted property until completly payed.

Prices and mistakes are subject to change.
